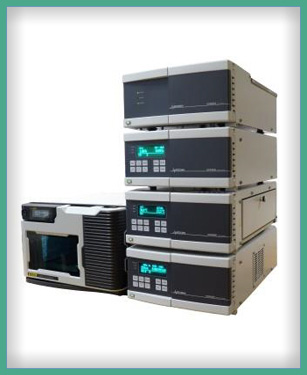

QUATERNARY GRADIENT ANALYTICAL SYSTEM WITH AUTOSAMPLER
High effective HPLC system containing UV-VIS detector, column oven, analytical pump, gradient box and autosampler. Detector with continuously variable wavelength 190-800 nm and very low noise level offers high-speed sampling up to 100 Hz.
Communication of units is through RS232 or Ethernet(LAN). Additional PC A/D converter card is not required for this system. System contains autosampler and Clarity software. All units are supported in Clarity software from installation.
MAIN PARTS
ECD2800 UV-VIS DETECTOR
Detector with continuously variable wavelength in the range of 190-800 nm and a noise level ±3·10-6 AU. Unit offers high-speed sampling up to 100 Hz and wavelength autocalibration. AC 05 analytical cell is included.
ECP2010 ANALYTICAL HPLC PUMP
This isocratic pump works with Gradient Box ECB2004 as a quaternary gradient pump. Flow rate range is 0.01-10 ml/min and pressure limit at 40 MPa. Unit software includes new learning algorithm for pulsation suppression and many testing and diagnostic functions.
ECO2080 COLUMN OVEN WITH HEATING AND COOLING
This column oven allows precise temperature stabilization in the range 0-80°C. A big compartment room can accommodate up to 3 columns with length up to 25 cm. Peltier technology offers the possibility of heating and cooling independently from room temperature.
ECB2004 GRADIENT BOX WITH DEGASSER
Box is suited for handling liquids in ECOM gradient systems. It accommodates a container for solvent bottles, built-in high-efficiency vacuum degasser and four-way gradient valve. Up to four solvent lines may be degassed simultaneously by one unit. Four-way gradient valve is controlled from the pump ECP2010.
AUTOSAMPLER L-3320
Automatic autosampler ensuring excellent accuracy and linearity of sample injection. Very low sample residue contamination, μl pick-up mode achieves zero sample loss. Automated selfchecking. Rheodyne valve ensures reliable operation.
CLARITY CHROMATOGRAPHY SOFTWARE
This system is fully controlled by Clarity Chromatography software, which is also a part of delivery. Clarity software complies CFR21GLP requirements.
