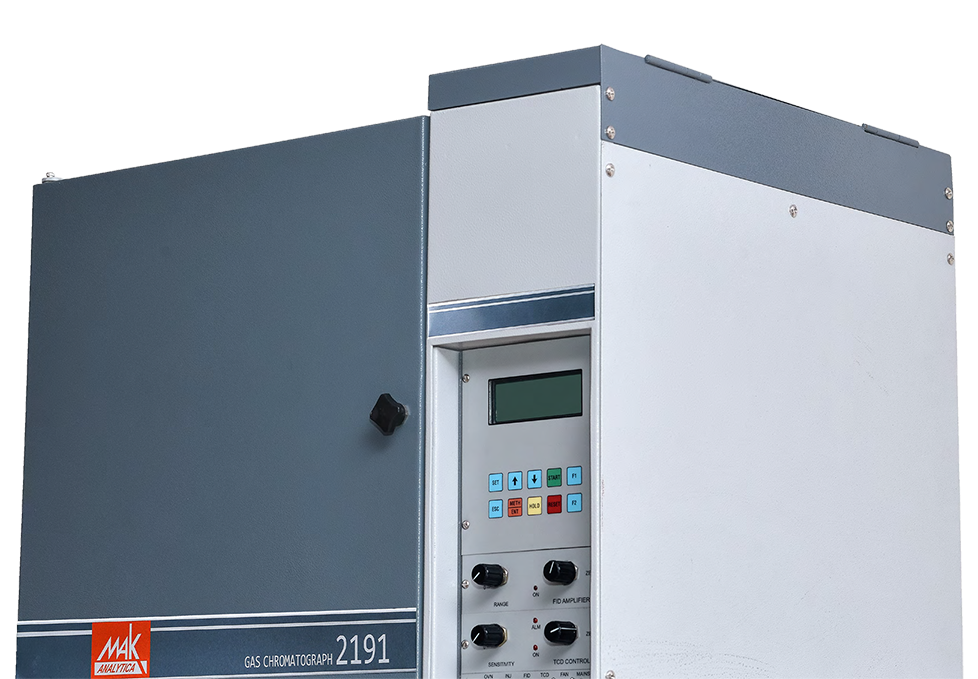

2191 is next version of ‘MAK GC 911M’. The MAK ANALYTICA 2191 is designed out of our varied experience in the field of analytical instrumentation and Gas Chromatography in specific. Our team comprises of specialists from engineering, electronics, application and other related disciplines, who constantly strive to improve the performance of our instruments.

The MAK ANALYTICA 2191 is suitable for Quality control. R & D, routine analytical requirements, & most of the applications. The modular concept for additional accessories, facilities, detectors and serviceability.

Temperature Control

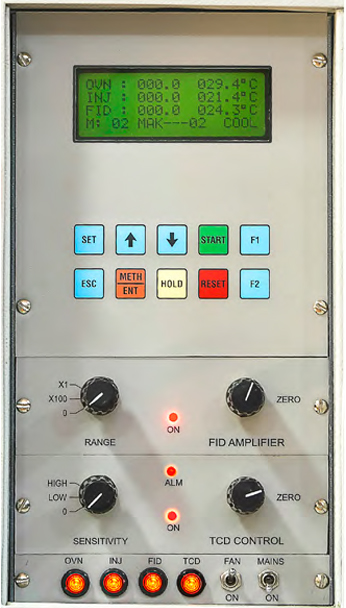

The oven, Injector Detector and auxillary channel temperatures are controlled precisely by user friendly Microcontroller with 4 line alphanumeric display has facility of 9 step temperature profile for oven heating and over 60 methods storage capacity with alphanumeric naming.

All the parameters, (set and actual), are displayed. The higher temperature cut off (adjustable) are provided for all the channels. Flame Ionisation Detector is designed to give high sensitivity, while Thermal Conductivity Detector is with minimum cell volume to get maximum sensitivity.

Modular construction makes the instrument versatile to upgrade with add-on modules as and when required. This also makes it convenient from service point of view so as to keep the down time to the minimum.

The Machine is tested to ruggedness and robustness. % RSD is found to be less than 2% under test conditions.

With our prompt after-sales service and application support, we have wide customer base in all kinds of industries.

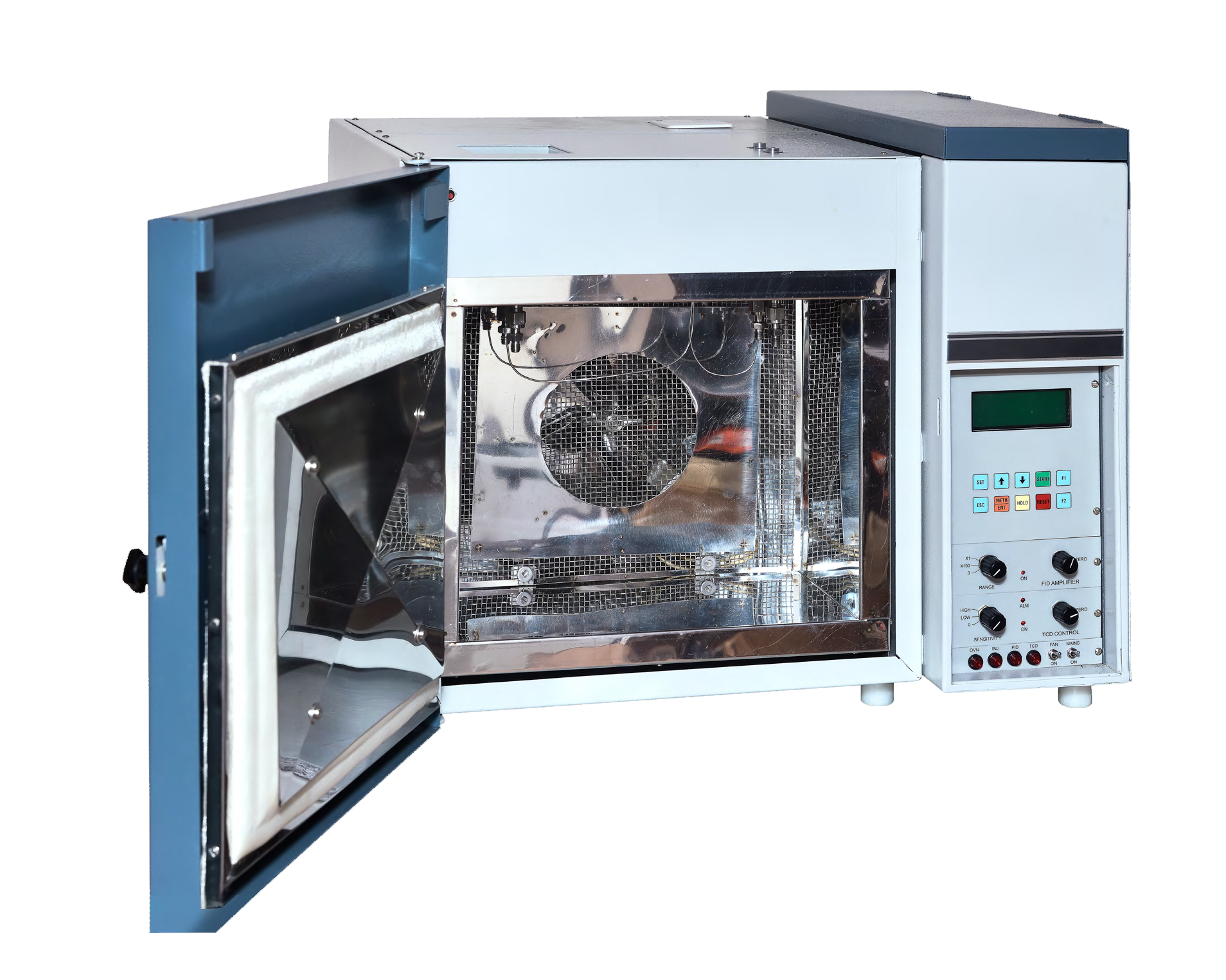

Operating Temperature:
50˚C to 400˚C
Adapters for, Off-column with quartz liner for 1/8” SS column, On-column for 1/8” SS, 1/4” glass columns, Split/split less with quartz liner for capillary/mega bore columns.
DETECTORS :
Flame Ionisation Detector (FID) : Dual Operating Temperature : 50˚C to 400˚C
Sensitivity: > 0.022 coulombs/gm,
MDL: <5x10-12 gm c/sec Xylene

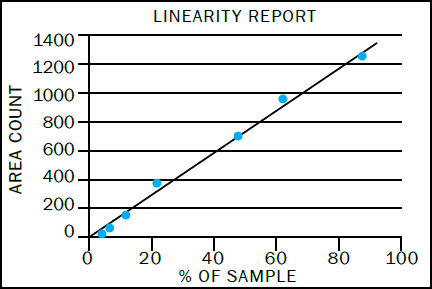

LDR: 107,
Electrometer Amplifier sensitivity: 1x10-12 Amps/mV, Thermal Conductivity Detector
(TCD) : Dual pass Operating Temperature : 50˚C to 400˚C
Filaments: Tungsten-Rhenium,
TCD control: Constant filament temperature
mode (Adjusts current as per carrier gas TC, + overload
protection for filament safety),
OTHER AVAILABLE DETECTORS :
NPD, ECD, DID, FPD, PID.

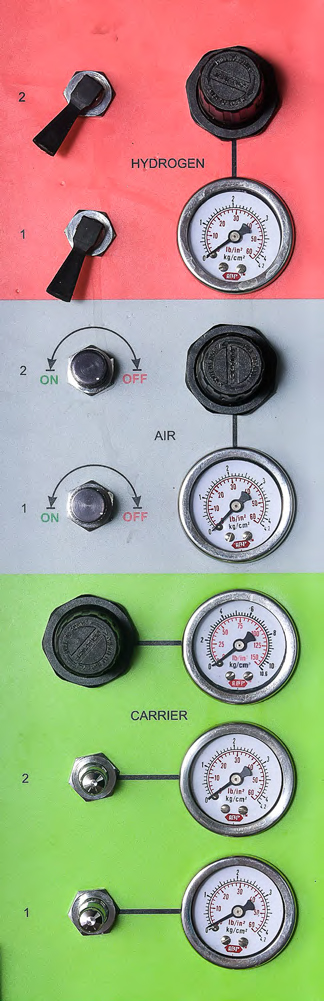

PNEUMATICS :
Carrier pressure switch for safety
Pressure controllers & gauges for, carrier, H2, Air
Shut-off valves for H2, air
Flow controllers (Options)
Fine needle valves, DFC, EPC
Out-put signal (options)
Analog : 0-1 volt
USB with chromatography software
Power:
230V ac - 50Hz, 2KW
Dimensions:
565 x 475 x 485 (WxHxD)
Weight:
45 Kg.
